Economical Theater 5.1_6.5″ In-wall Speaker

Economical Theater 5.1_6.5" In-wall Speaker
Economical Theater 5.1_6.5" In-wall Speaker - Image 2
Economical Theater 5.1_6.5" In-wall Speaker - Image 3
Economical Theater 5.1_6.5" In-wall Speaker - Image 4
Economical Theater 5.1_6.5" In-wall Speaker - Image 5
Categories , Tags , ,

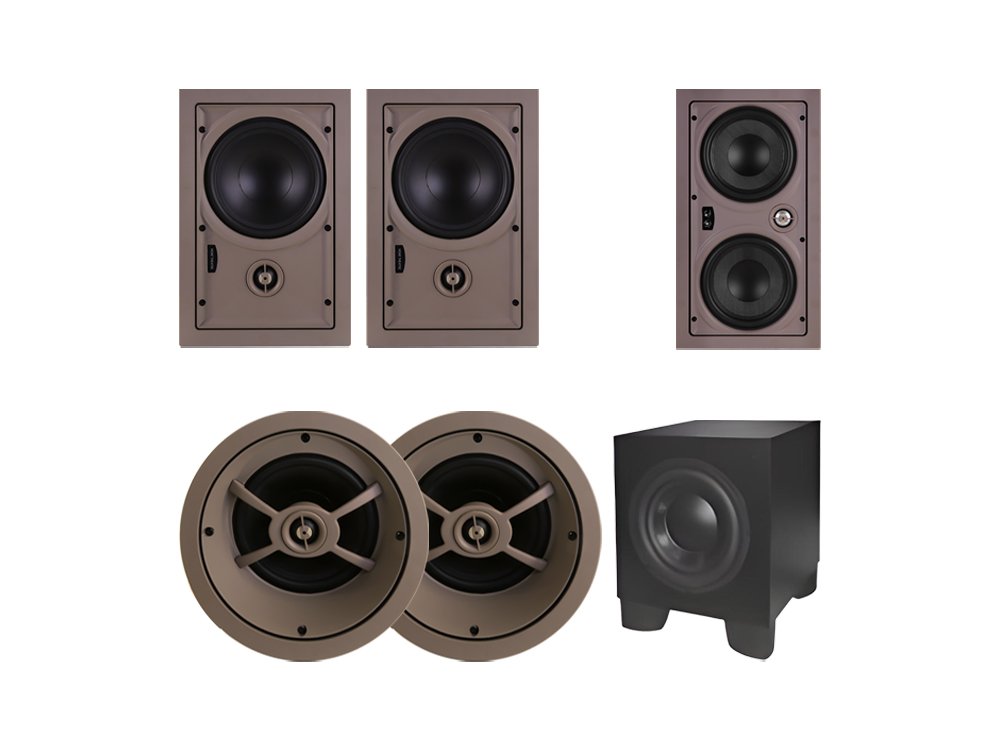

Economical Theater 5.1_6.5″ In-wall Speaker

  • Main Speaker

2x HE-TK672 + 1xHE-TK655

  • Surrounded Speaker

2x HE-TES1

  • Subwoofer

1x HE-TK10S

ASK FOR A QUOTE

Product Details

Description

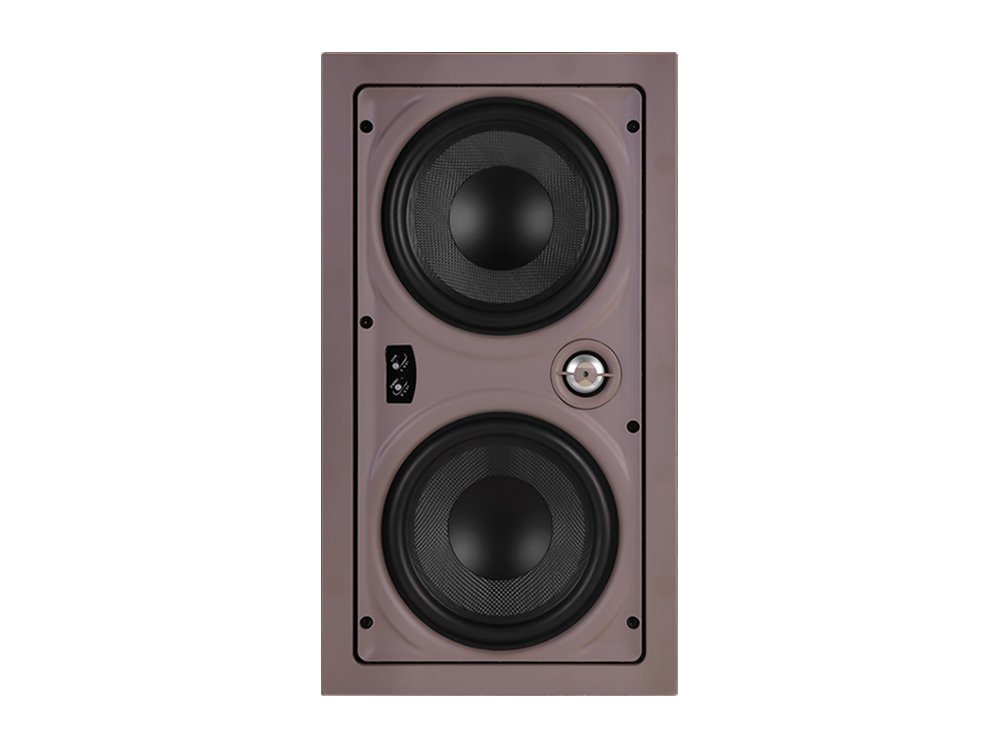

Model HE-TK672 HE-TK655
Rated Power Rated power: 5-100 WATTs 5-150 WATTs
Frequency Response (-10dB) 45Hz-20KHz (±3dB) (-10dB) 45Hz-20KHz (±3dB)
Bass Unit 6.5-inch composite body + NBR rubber Dual 6.5-inch composite body + NBR rubber
Treble Unit 1-inch silk speaker membrane with adjustable angle 1-inch aluminum magnesium metal membrane unit with adjustable angle
Box Material Iron grille + ABS engineering plastic cabinet Iron grille + ABS engineering plastic cabinet
Product Weight 1.8KG 3.8KG
Installation Method Embedded Embedded
Static Power Consumption N/A N/A
System Impedance 8 OHMS 8 OHMS
Output Sound Pressure 91 dB 1M/1W 91 dB 1M/1W
Output Max Sound Pressure (SPL) 113 dB (SPL) 115 dB
RMS 50 WATTS 50 WATTS
PAK 100 WATTS 150 WATTS
Installation Size H276*W163.5mm H190.5*W368.3mm
Installation Depth 85mm 85mm
Audio Input Interface Button type copper head Button type copper head

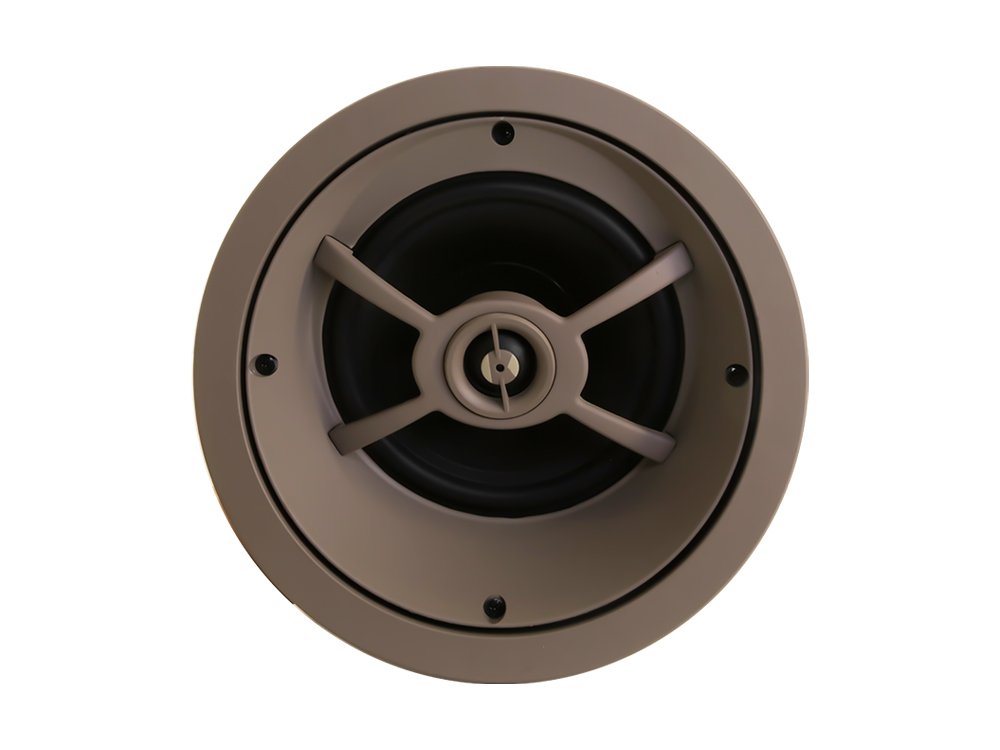

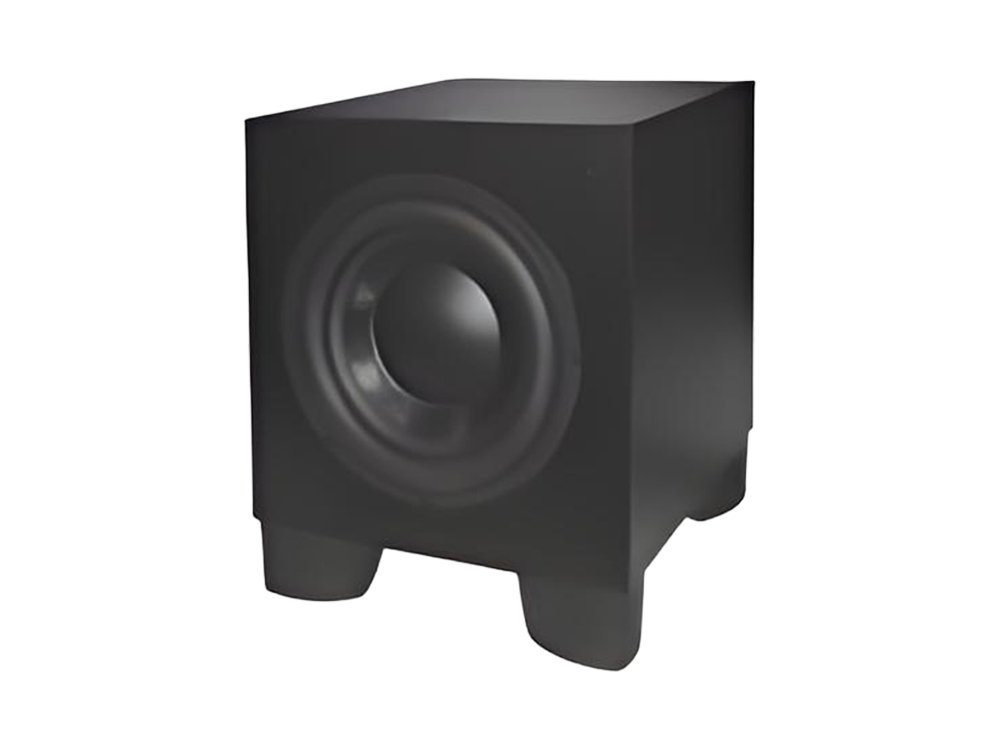

Model HE-TKS1 HE-TK10S
Rated Power 5-100 WATTs 5-200 WATTs
Frequency Response (-10dB) 45Hz-20KHz (±3dB) (-10dB) 40Hz-120Hz
Bass Unit 6.5-inch composite body + NBR rubber 10-inch composite body + NBR rubber
Treble Unit 1-inch silk speaker membrane with adjustable angle N/A
Box Material Iron grille + ABS engineering plastic cabinet MDF+Matte finish black vinyl
Product Weight 2.6KG 13.6 KG
Installation Method Embedded Floor-standing
Static Power Consumption N/A 0.3E
System Impedance 8 OHMS 4 OHMS
Output Sound Pressure 91 dB 1M/1W 91 dB 1M/1W
Output Max Sound Pressure (SPL) 113 dB (SPL) 103dB
RMS 50 WATTS 100 WATTS
PAK 100 WATTS 200 WATTS
Installation Size 210mm round hole H320*W430*D370mm
Installation Depth/Phase 110mm Switchable 0-180 degree
Audio Input Interface Button type copper head LEFT& RIGHT LINE LEWEL, LFE
